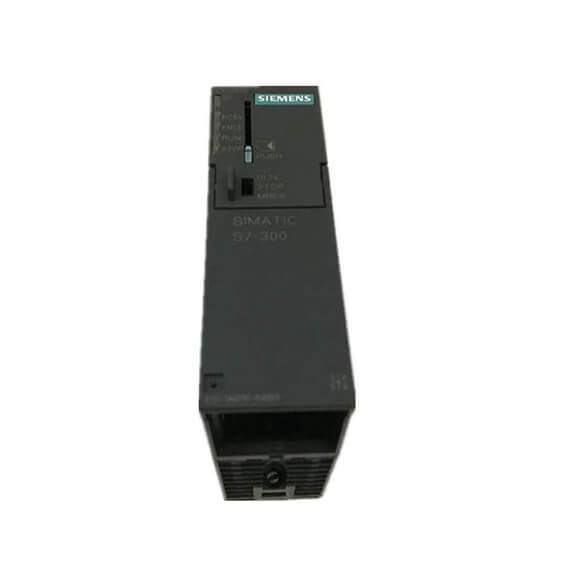

Siemens SIMATIC S7-300 CPU 314 With MPI 6ES7314-1AG14-0AB0

Siemens SIMATIC S7-300 CPU 314 With MPI 6ES7314-1AG14-0AB0

Series#: Siemens PLC

Product Details

Siemens SIMATIC S7-300 CPU 314 With MPI 6ES7314-1AG14-0AB0
Siemens PLC Controller Module LOGO Series
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7314-1AG14-0AB0
Article number	CPU314, 128 KB
General information
HW functional status	01
Firmware version	V3.3
Engineering with
● Programming package	STEP 7 V5.5 + SP1 or higher or STEP 7 V5.2 + SP1 or higher with HSP 218
Supply voltage
Rated value (DC)
● 24 V DC	Yes
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
external protection for power supply lines (recommendation)	2 A min.
Mains buffering
● Mains/voltage failure stored energy time	5 ms
● Repeat rate, min.	1 s
Input current
Current consumption (rated value)	650 mA
Current consumption (in no-load operation), typ.	140 mA
Inrush current, typ.	3.5 A
I²t	1 A²·s
Power loss
Power loss, typ.	4 W
Memory
Work memory
● integrated	128 kbyte
● expandable	No
● Size of retentive memory for retentive data blocks	64 kbyte
Load memory
● Plug-in (MMC)	Yes
● Plug-in (MMC), max.	8 Mbyte
● Data management on MMC (after last programming), min.	10 y
Backup
● present	Yes; Guaranteed by MMC (maintenance-free)
● without battery	Yes; Program and data
CPU processing times
for bit operations, typ.	0.06 µs
for word operations, typ.	0.12 µs
for fixed point arithmetic, typ.	0.16 µs
for floating point arithmetic, typ.	0.59 µs
CPU-blocks
Number of blocks (total)	1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB
● Number, max.	1 024; Number range: 1 to 16000
● Size, max.	64 kbyte
FB
● Number, max.	1 024; Number range: 0 to 7999
● Size, max.	64 kbyte
FC
● Number, max.	1 024; Number range: 0 to 7999
● Size, max.	64 kbyte
OB
● Description	see instruction list
● Size, max.	64 kbyte
● Number of free cycle OBs	1; OB 1
● Number of time alarm OBs	1; OB 10
● Number of delay alarm OBs	2; OB 20, 21
● Number of cyclic interrupt OBs	4; OB 32, 33, 34, 35
● Number of process alarm OBs	1; OB 40
● Number of startup OBs	1; OB 100
● Number of asynchronous error OBs	4; OB 80, 82, 85, 87
● Number of synchronous error OBs	2; OB 121, 122
