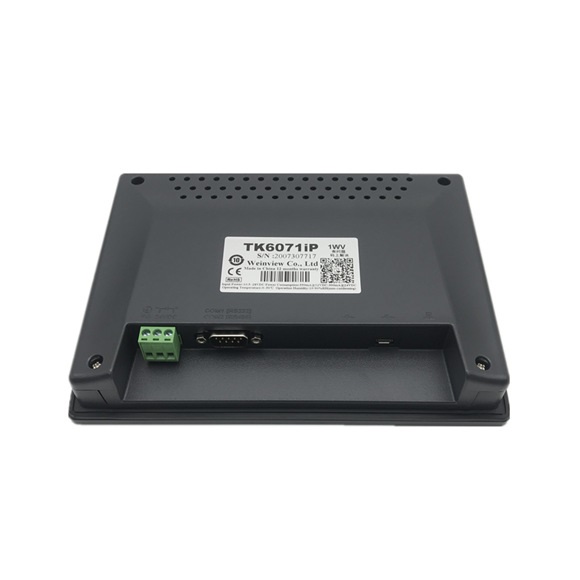

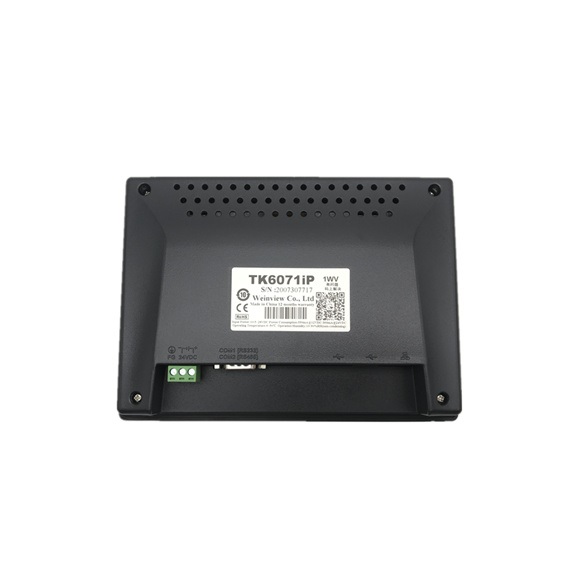

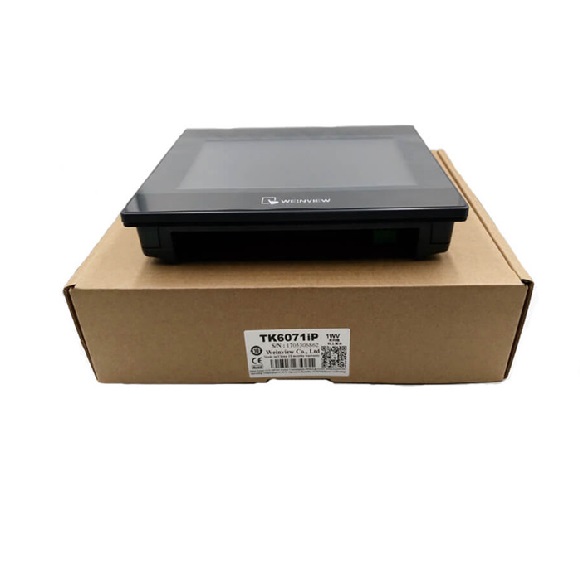

Weintek Weinview 7 inch HMI Touch Screen TK6071iP

Series#: Weinview HMI

Product Details

Qty:

Specification

Weintek 7 inch HMI TK6071iP
Display 7” TFT
Resolution (W x H dots) 800 x 480
Luminance 350
Contrast 500:1
Backlight LED
Backlight Life >30,000 H
Display Color 65536
Type 4-wireless resistive
Flash 128MB
RAM 64MB
32Bit RISC CPU 400MHz
USB Client USB 2.0 x 1
COM interface Com1: RS-232, Com2: RS-485 2W/4W
Input Power 24±20%VDC
Power Consumption 300mA @ 24V
Power Supply Isolation No
Withstand-voltage 500VAC/1min
Insulation Resistance More than 50MΩ at 500VDC
Vibration Resistance 10 to 25Hz(X,Y,Z direction 2G30 minutes)
Shell Material Engineering plastic
Dimension W*H*D 200.4 x 146.5 x 34mm
Hole Size 192 * 138mm
Weight 0.52kg
