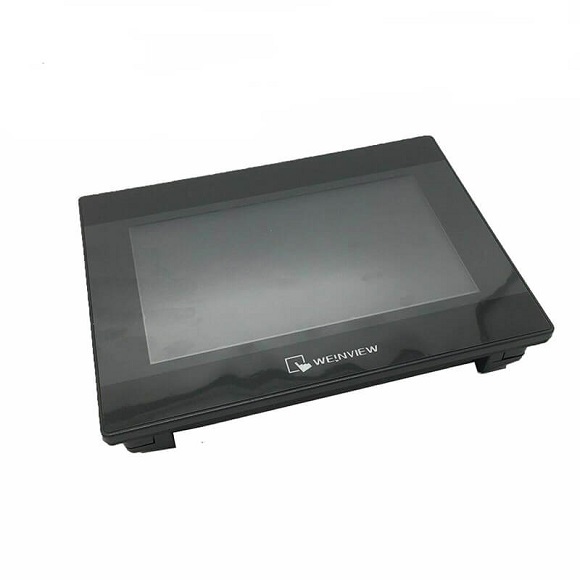

Model | TK6071iQ | |
Display | Display | 7” TFT |
Resolution (W x H dots) | 800 x 480 | |
Luminance | 350 | |
Contrast | 500:1 | |
Backlight | LED | |
Backlight Life | >30,000 H | |
Display Color | 65536 | |
Touch Panel | Type |
4-wireless resistive |
Memory | Flash | 128MB |
RAM | 64MB | |
CPU | 32Bit RISC CPU 400MHz | |
I/O Interface | USB Client |
USB 2.0 x 1 |
COM interface | Com1: RS-232, Com2: RS-485 2W/4W | |
Power Supply | Input Power | 24±20%VDC |
Power Consumption | 300mA @ 24V | |
Power Supply Isolation | No | |
Withstand-voltage | 500VAC/1min | |
Insulation Resistance | More than 50MΩ at 500VDC | |
Vibration Resistance | 10 to 25Hz(X,Y,Z direction 2G30 minutes) | |
Specification | Shell Material | Engineering plastic |
Dimension W*H*D | 200.4 x 146.5 x 34mm | |
Hole Size | 192 * 138mm | |
Weight | 0.52kg |
