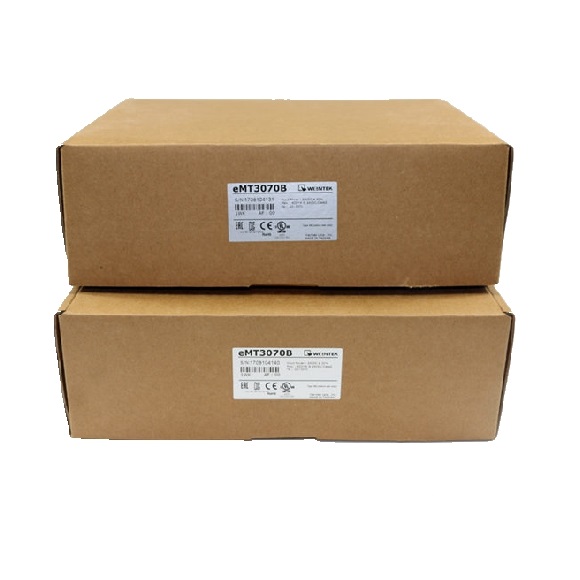

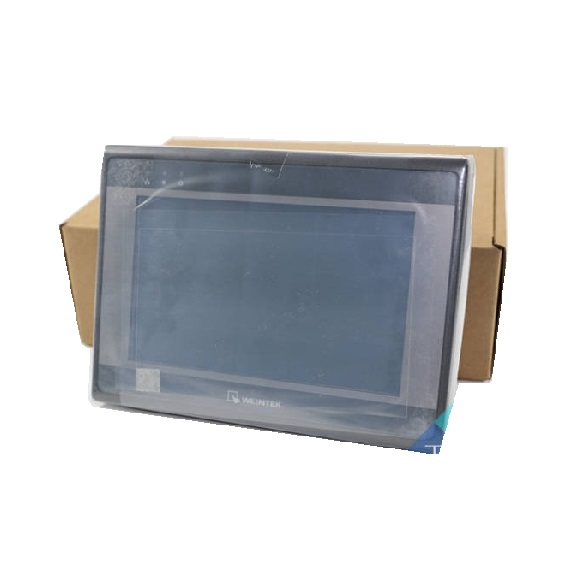

Weintek Touch Screen HMI eMT3070B

Series#: Weintek HMI

Product Details

Qty:

Specification

Display 7” TFT
Resolution 800 x 480
Brightness (cd/m2) 500
Contrast Ratio 500:1
Backlight Type LED
Backlight Life Time >30,000 hrs.
Colors 16.7M
LCD Viewing Angle (T/B/L/R) 60/50/65/65
Touch Panel Type 4-wire Resistive Type
Touch Panel Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory Flash 256 MB
Memory RAM 256 MB
 Processor 32 bits RISC Cortex-A8 1GHz
Processor SD Card Slot SD/SDHC
Processor USB Host USB 2.0 x 1
Processor USB Client USB 2.0 x 1 (Micro USB)
Processor Ethernet 10/100 Base-T x 1
I/O Port COM Port COM1: RS-232/RS-485 2W/4W, COM3: RS-232/RS-485 2W*
I/O Port RS-485 Dual Isolation Yes
I/O Port CAN Bus Yes
I/O Port HDMI N/A
I/O Port Audio Output N/A
I/O Port Video Input N/A
 RTC Built-in
Input Power 24±20%VDC
Power Isolation Built-in
Power Consumption 400m A@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MW at 500VDC
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating Yes
Enclosure Aluminum
Dimensions WxHxD 200.3 x 146.3 x 42.5 mm
Panel Cutout 192 x 138 mm
Weight Approx. 0.9 kg
Mount Panel mount
Protection Structure UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
Storage Temperature -20° ~ 70°C (-4° ~ 158°F)
Operating Temperature -20° ~ 50°C (-4° ~ 122°F)
Relative Humidity 10% ~ 90% (non-condensing)
CE CE marked
UL cULus Listed
 Software EasyBuilder Pro V5.00.01 or later versions
