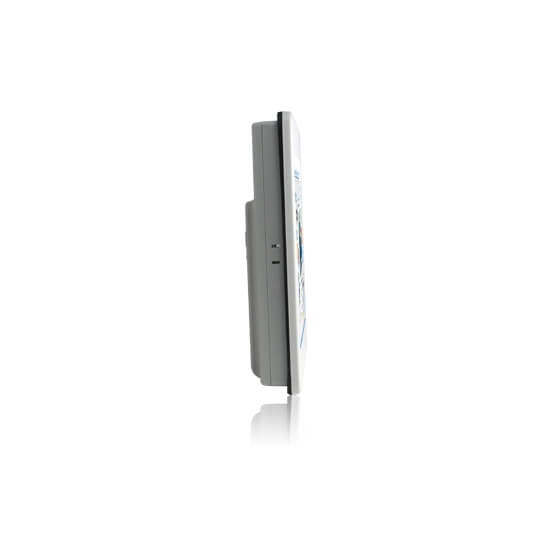

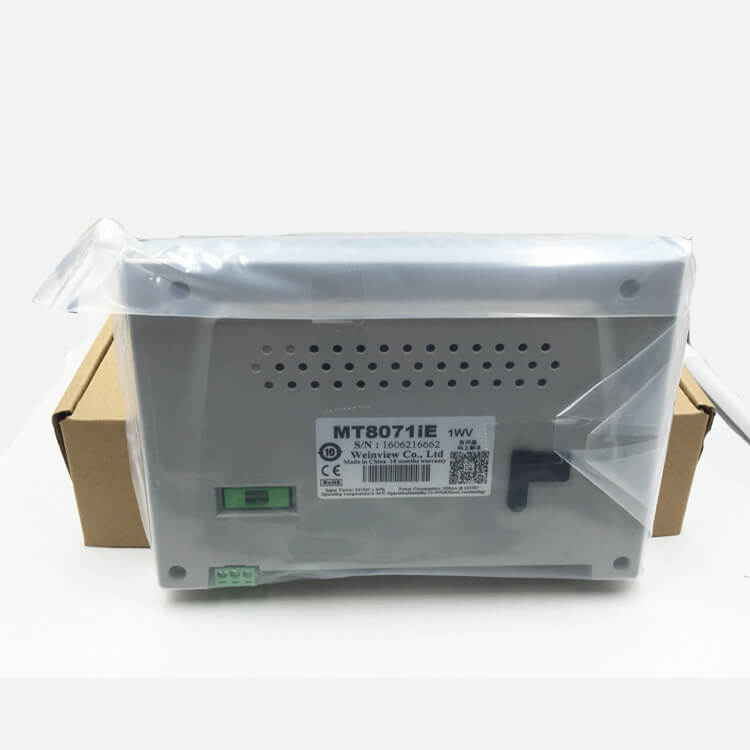

Weintek HMI MT8071iE

Series#: Weinview HMI

Product Details

  • 7″ 800 x 480 TFT LCD, LEDBacklight
  • Fan-less Cooling System
  • COM2 and COM3 RS-485 support MPI 187.5K, please use one at onetime
  • PCB coating process ensures high reliability toresist from corrosion in harsh environment
  • Built-in PowerIsolation
  • NEMA4 / IP65 Compliant FrontPanel
Qty:

Specification

Display 7” TFT
Resolution 800 x 480
Brightness (cd/m2) 400
Contrast Ratio 800:1
Backlight Type LED
Backlight Life Time >30,000 hrs.
Colors 16.7M
LCD Viewing Angle (T/B/L/R) 80/60/80/80
Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Flash 128 MB
RAM 128 MB
 Processor 32 bits RISC Cortex-A8 600MHz
SD Card Slot N/A
USB Host USB 2.0 x 1
USB Client N/A
Ethernet 10/100 Base-T x 1


COM Port

COM1: RS-232 COM2: RS-485 2W/4W

COM3: RS-485 2W

RS-485 Dual Isolation N/A
CAN Bus N/A
HDMI N/A
Audio Output N/A
Video Input N/A
 RTC Built-in
Input Power 24±20%VDC
Power Isolation Built-in
Power Consumption 450mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MW at 500VDC
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating Yes
Enclosure Plastic
Dimensions WxHxD 200.3 x 146.3 x 34 mm
Panel Cutout 192 x 138 mm
Weight Approx. 0.6 kg
Mount Panel mount
Protection Structure UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant Front Panel
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature 0° ~ 50°C (32° ~ 122°F)
Relative Humidity 10% ~ 90% (non-condensing)
CE CE marked
ATEX ATEX Zone 2/22 Category 3 G/D
UL cULus Listed
 Software EasyBuilder Pro V4.10.04 or later versions
