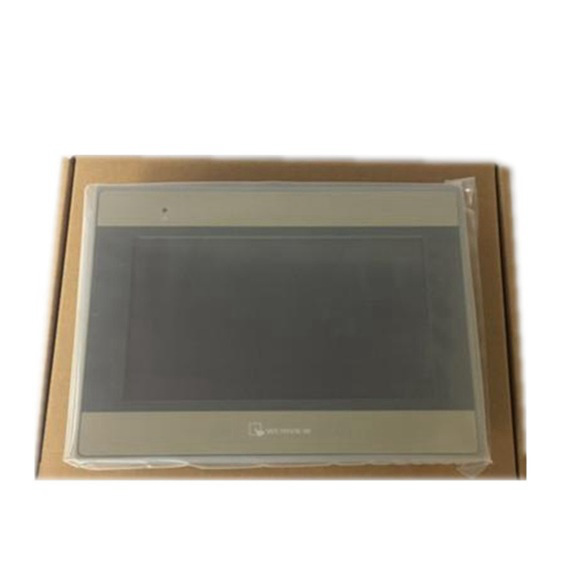

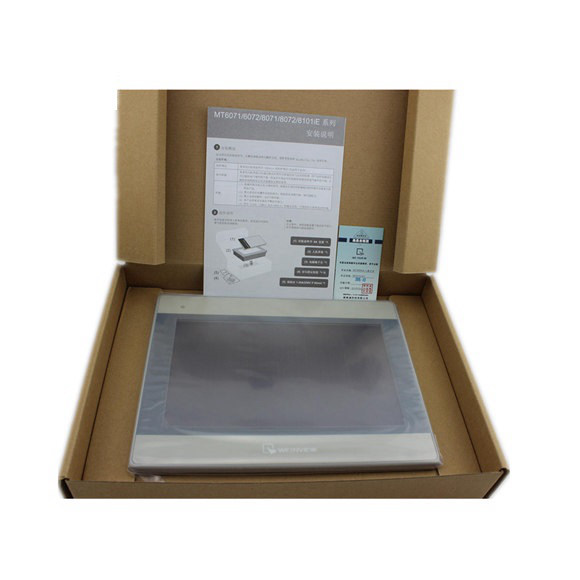

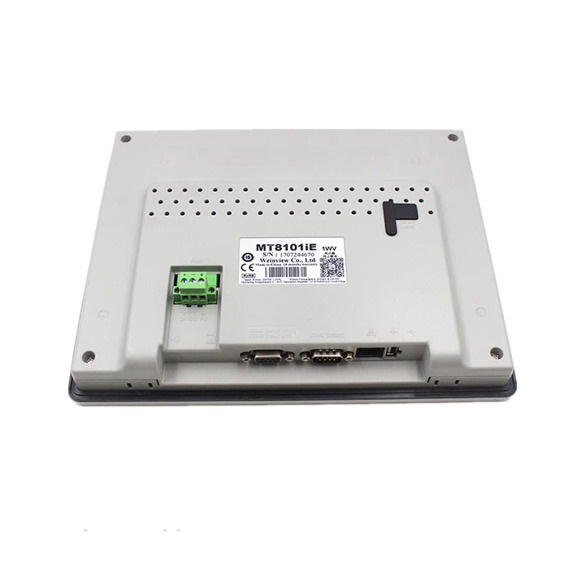

Weintek HMI MT8101iE

Series#: Weintek HMI

Product Details

Qty:

Specification

Display Display 10.1” TFT
Resolution 800  x 480
Brightness (cd/m2) 300
Contrast Ratio 500:1
Backlight Type LED
Backlight Life Time >30,000 hrs.
Colors 262K
Touch Panel Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory Flash 128 MB
RAM 128 MB
Processor 32 bits RISC Cortex-A8 600MHz

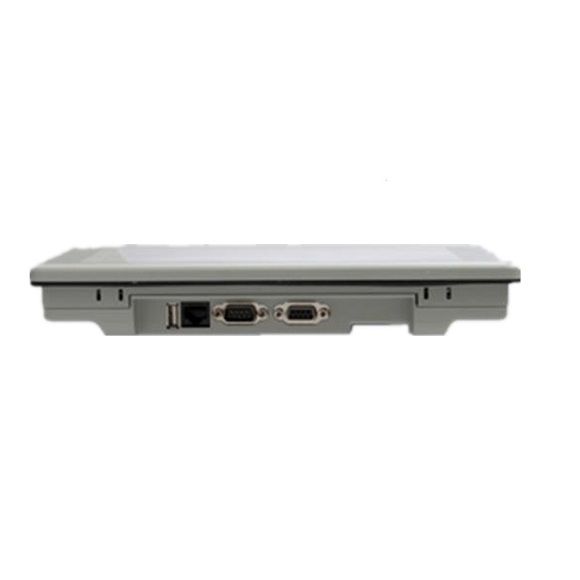

I/O Port

SD Card Slot N/A
USB Host USB 2.0 x 1
USB Client N/A
Ethernet 10/100  Base-T x 1


COM Port

COM1: RS-232 COM2: RS-485 2W/4W

COM3: RS-485 2W

RS-485 Dual Isolation N/A
CAN Bus N/A
HDMI N/A
Audio Output N/A
Video Input N/A
RTC Built-in




Power

Input Power 24±20%VDC
Power Isolation Built-in
Power Consumption 400mA@24VDC
Voltage Resistance 500VAC  (1 min.)
Isolation Resistance Exceed 50MW at 500VDC
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)




Specification

PCB Coating Yes
Enclosure Plastic
Dimensions WxHxD 271  x 213 x 40 mm
Panel Cutout 260  x 202 mm
Weight Approx.  1.3 kg
Mount Panel mount
Environment Protection Structure NEMA4 / IP65 Compliant Front Panel
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
