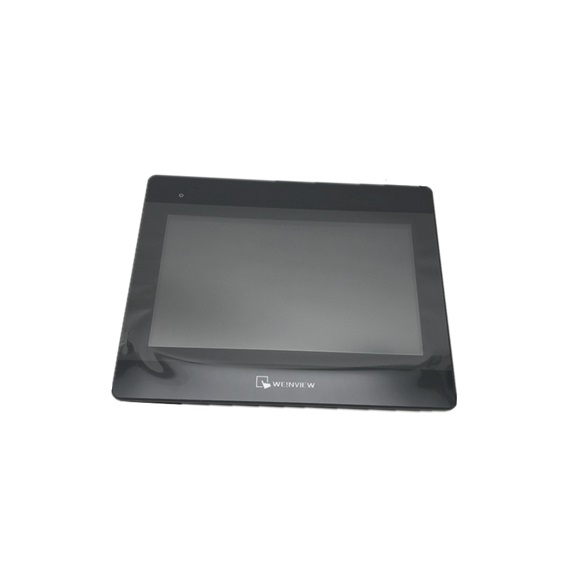

  • Weintek HMI MT8102iP Weinview Touch Screen 4
  • Weintek HMI MT8102iP Weinview Touch Screen 3

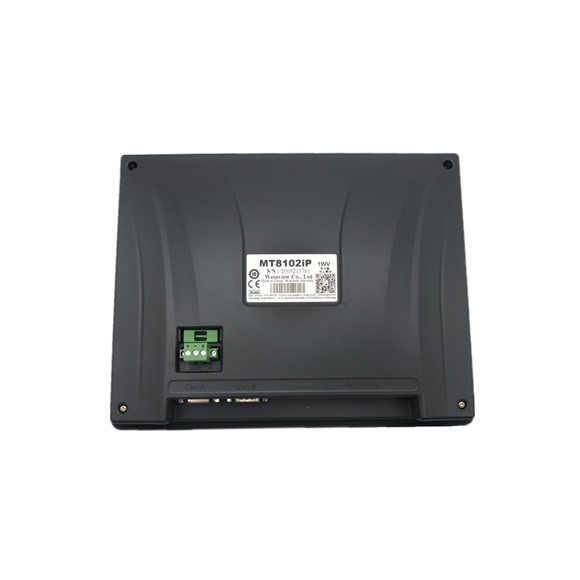

  • Weintek HMI MT8102iP Weinview Touch Screen 2

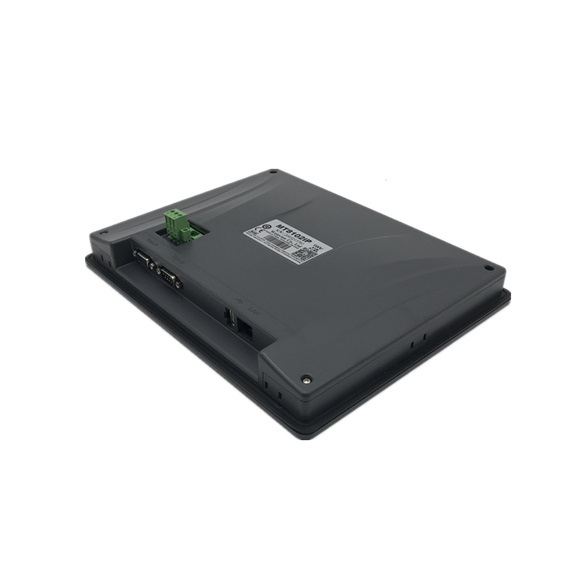

  • Weintek HMI MT8102iP Weinview Touch Screen 6
  • Weintek HMI MT8102iP Weinview Touch Screen 5
  • Weintek HMI MT8102iP Weinview Touch Screen 1
  • Weintek HMI MT8102iP Weinview Touch Screen 4
  • Weintek HMI MT8102iP Weinview Touch Screen 3
  • Weintek HMI MT8102iP Weinview Touch Screen 2
  • Weintek HMI MT8102iP Weinview Touch Screen 6

Weintek HMI MT8102iP Weinview Touch Screen

Series#: Weintek HMI

Product Details

Qty:

Specification

Display 10.1” TFT
Resolution 1024 x 600
Brightness (cd/m2) 350
Contrast Ratio 500:1
Backlight Type LED
Backlight Life Time >20,000 hrs.
Colors 16.7M
LCD Viewing Angle (T/B/L/R) 60/60/70/70
Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Flash 128 MB
RAM 128 MB
Processor ARM RISC 528MHz
SD Card Slot N/A
USB Host USB 2.0 x 1
USB Client N/A
Ethernet 10/100 Base-T x 1
COM Port Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
RS-485 Dual Isolation N/A
CAN Bus N/A
HDMI N/A
Audio Output N/A
Video Input N/A
 RTC Built-in
Input Power 10.5 ~ 28VDC
Power Isolation Built-in
Power Consumption 1.3A@12VDC ; 650mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MW at 500VDC
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating N/A
Enclosure Plastic
Dimensions WxHxD 271 x 213 x 36.4 mm
Panel Cutout 260 x 202 mm
Weight Approx. 1 kg
Mount Panel mount
Protection Structure NEMA4 / IP65 Compliant Front Panel
Storage Temperature -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature 0° ~ 50°C (32° ~ 122°F)
Relative Humidity 10% ~ 90% (non-condensing)
CE CE marked
 Software EasyBuilder Pro
