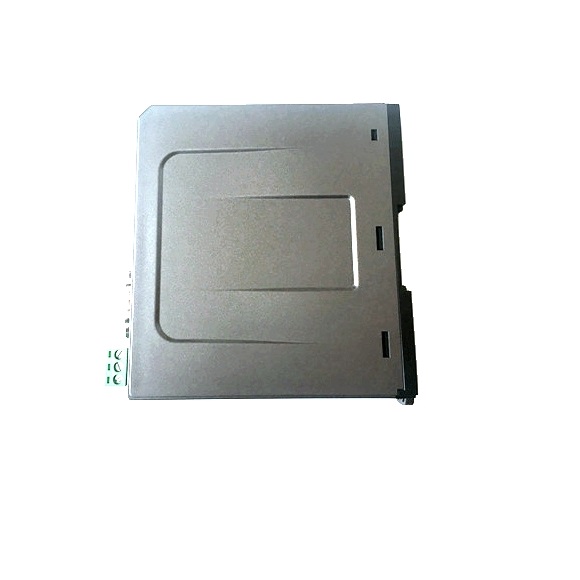

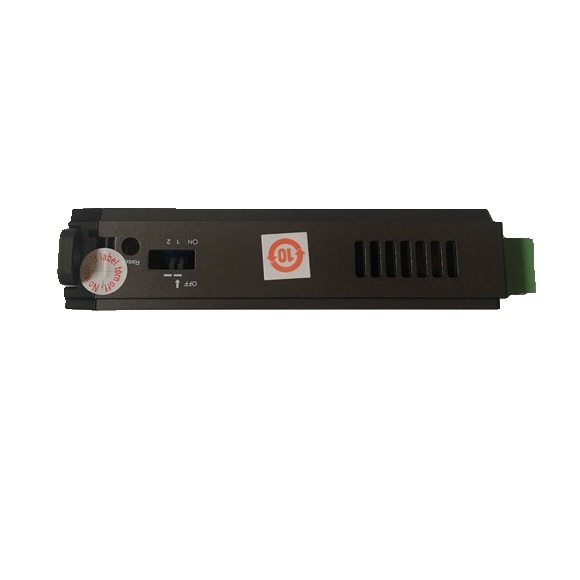

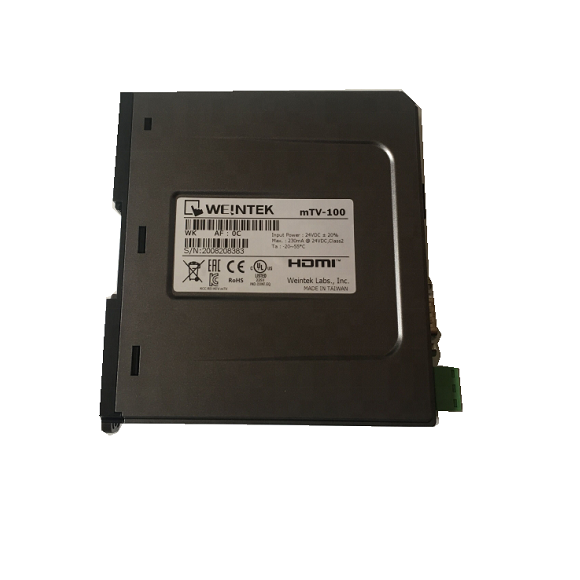

Weintek Machine TV Interface mTV-100

Series#: Weintek HMI

Product Details

Qty:

Specification

model Machine TV Interface mTV-100
RAM/Flash 256 MB
 Processor 32-bit RISC Cortex-A8 600MHz
SD Card Slot SD/SDHC
USB Host USB 2.0 x 1
USB Client N/A

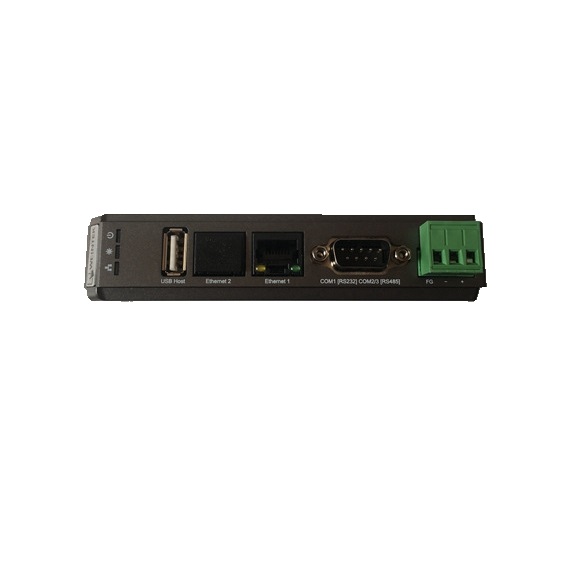

Ethernet 10/100/1000 Base-T x 1


COM Port

COM1: RS-232 COM2: RS-485 2W/4W

COM3: RS-485 2W

RS-485 Dual Isolation N/A
CAN Bus N/A

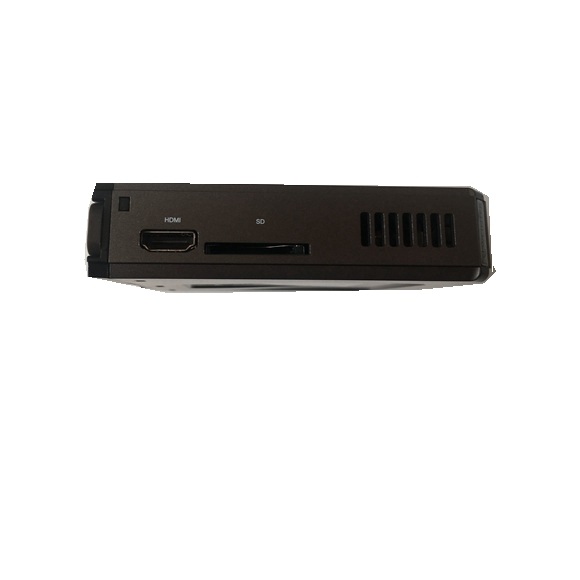

HDMI Output Resolution 1280 x 720
Audio Output HDMI Audio Output
Video Input N/A
 RTC Built-in
Input Power 24±20%VDC
Power Isolation Built In
Power Consumption 230mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MW at 500VDC
Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating Yes
Enclosure Plastic
Dimensions WxHxD 27 x 130 x 115 mm
Weight Approx. 0.18 kg
Mount 35mm DIN rail mounting
Protection Structure IP20
Storage Temperature -20° ~ 70°C (-4° ~ 158°F)
Operating Temperature -20° ~ 55°C (-4° ~ 131°F)
Relative Humidity 10% ~ 90% (non-condensing)
CE CE marked;
UL cULus Listed
 Software EasyBuilder Pro V3.00.02 or later versions
