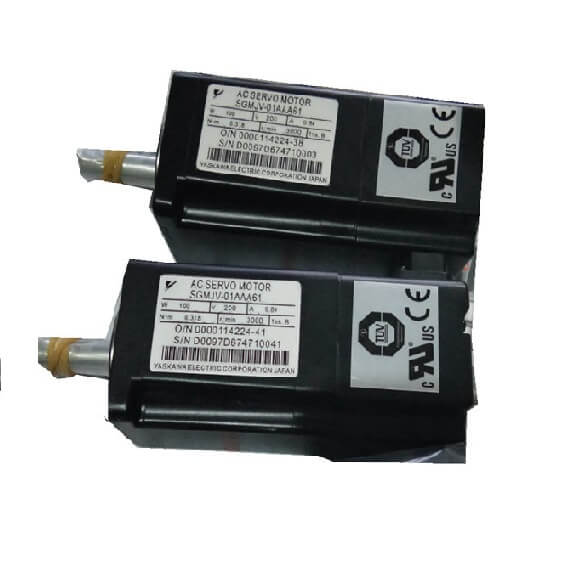

Yaskawa Servo Motor 100W SGMJV-01AAA61

Series#: Yaskawa Servomotor

Product Details

  • Yaskawa Servo Motor 100W SGMJV-01AAA61
  • We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China.
  • We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
  • Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor,Yaskawa ∑5 SGMJV Rotary Servomoto,Yaskawa ∑7 SGM7G Rotary Servomotor,Yaskawa ∑7 SGM7J Rotary Servomotor
  • 100% Original and new,In stock by Yaskawa Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Yaskawa Servo Motor SGMJV voltage 230 V
YaskawaServo motor SGMJV- @ A5A@ 01A@ 02A@ 04A@ 08A@
Rated output *1 W 50 100 200 400 750
Rated torque *1,*2 N·m 0.159 0.318 0.637 1.27 2.39
Instantaneous peak torque*1 N·m 0.557 1.11 2.23 4.46 8.36
Rated current*1 A (rms) 0.61 0.84 1.6 2.7 4.7
Instantaneous max. current *1 A (rms) 2.1 2.9 5.8 9.3 16.9
Rated speed *1 min-1 3000
Max. speed *1 min-1 6000
Torque constant N·m/A (rms) 0.285 0.413 0.435 0.512 0.544
Rotor moment of inertia (JM) kg·m2x10-4 (without brake) 0.0414 0.0665 0.259 0.442 1.57
Rotor moment of inertia (JM) kg·m2x10-4 (with brake) 0.0489 0.0740 0.323 0.506 1.74
Allowable load moment of inertia (JL) Multiple of (JM) 15 10
Rated power rate*1 kW/s 6.11 15.2 15.7 36.5 36.3
Rated angular acceleration*1 rad/s2 38400 47800 24600 28800 15200
Encoder Standard Incremental encoder (20 bits)
Encoder Option Incremental encoder (13 bits)/ Absolute encoder (20 bits)
Allowable radial load N 78 245 392
Allowable thrust load N 54 74 147
Approx. mass Kg (without brake) 0.3 0.4 0.9 1.3 2.7
Approx. mass Kg (with brake) 0.6 0.7 1.5 1.9 3.6
Rated voltage 24 VDC
Power consumption (at 20°C) W 6 6.9 7.7
Current consumption (at 20°C) A 0.25 0.29 0.32
Holding torque N·m 0.159 0.318 0.637 1.27 2.39
Rise time for holding torque ms (max) 100
Release time ms (max) 60 80
