Yaskawa Sigma-7 Servo Motors Break Voltage | 200 V | ||||||

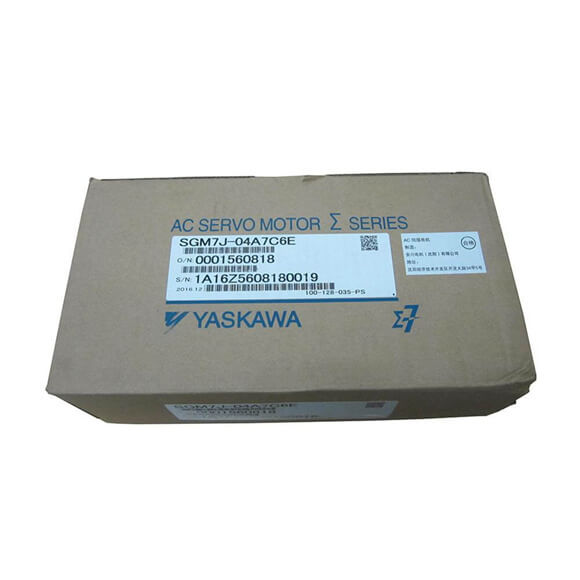

Yaskawa SGM7J Sigma-7 Servo Motors | A5A | 01A | C2A | 02A | 04A | 06A | 08A |
Time Rating | Continuous | ||||||
Thermal Class | UL: B, CE: B | ||||||
Insulation Resistance | 500 VDC, 10 MΩ min. | ||||||
Withstand Voltage | 1,500 VAC for 1 minute | ||||||
Excitation | Permanent magnet | ||||||
Mounting | Flange-mounted | ||||||
Drive Method | Direct drive | ||||||
Rotation Direction | Counterclockwise (CCW) for forward reference when viewed from the load side | ||||||
Vibration Class*1 | V15 | ||||||
Surrounding Air Temperature |
0°C to 40°C (With derating, usage is possible between 40°C and 60°C.)*4 | ||||||
Surrounding Air Humidity | 20% to 80% relative humidity (with no condensation) | ||||||
Installation Site |
• Must be indoors and free of corrosive and explosive gases.• Must be well-ventilated and free of dust and moisture.
• Must facilitate inspection and cleaning. • Must have an altitude of 1,000 m or less. (With derating, usage is possible between 1,000 m and 2,000 m.)*5 • Must be free of strong magnetic fields. |
||||||
Storage Environment |
Store the Servomotor in the following environment if you store it with the power cable disconnected.Storage temperature: -20°C to 60°C (with no freezing)
Storage humidity: 20% to 80% relative humidity (with no condensation) |
||||||
Impact Acceleration Rate at Flange |
490 m/s2 | ||||||
Number of Impacts | 2 times | ||||||
VibrationResistance*3
Vibration Acceleration Rate at Flange |
49 m/s2 | ||||||
Applicable SERVO- PACKs
SGD7S- |
R70A, R70F | R90A, R90F | 1R6A, 2R1F | 2R8A,2R8F | 5R5A | ||
Applicable SERVO- PACKs
SGD7W- SGD7C- |
1R6A*6, 2R8A*6 | 1R6A, 2R8A*6 | 2R8A,5R5A*6,
7R6A*6 |
5R5A, 7R6A |
