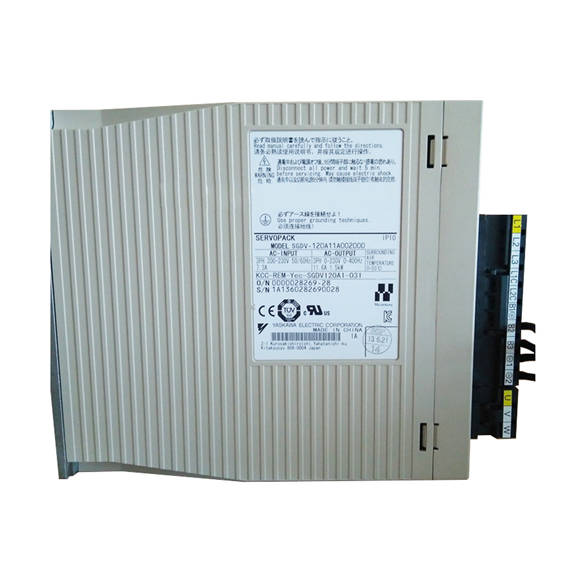

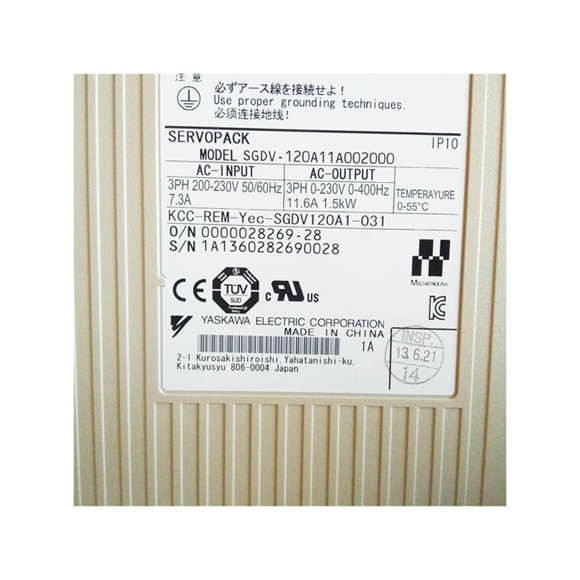

Yaskawa SERVOPACKs 1.3kW SGDV-120A01A00200

Yaskawa SERVOPACKs 1.3kW SGDV-120A01A00200
We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China.
We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks
100% Original and new,In stock by Yaskawa Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Yaskawa Sigma-5 SERVOPACKs Servo drive type SGDV- @	R70A@@A	R90A@@A	1R6A@@A	2R8A@@A	5R5A@@A	120A@@A008000
SGMAH-@	A3A@/A5A@	01A@	02A@	04A@	08A@	–
SGMPH-@	–	01A@	02A@	04A@	08A@	15A@
SGMJV-@	A5A@	01A@	02A@	04A@	08A@	–
SGMAV-@	A5A@	01A@	C2A@/02A@	04A@	06A@/08A@	10A@
SGMEV-@	–	01A@	02A@	04A@	08A@	15A@
Max. applicable motor capacity W	50	100	200	400	750	1500
Continuous output current Arms	0.66	0.91	1.6	2.8	5.5	11.6
Max. output current Arms	2.1	2.9	6.5	9.3	16.9	28
Input power Main circuit	Single-phase, 200 to 230 VAC + 10 to -15% (50/60 Hz)
Supply Control circuit	Single-phase, 200 to 230 VAC + 10 to -15% (50/60 Hz)
Control method	Single phase full-wave rectification / IGBT / PWM / sine-wave current drive method
Feedback	Serial encoder (incremental/absolute)
Usage/storage temperature	0 to +55 °C / -20 to 85 °C
Usage/storage humidity	90%RH or less (non-condensing)
Altitude	1000m or less above sea level
Vibration/shock resistance	4.9 m/s2 / 19.6 m/s2
Configuration	Base mounted
Approx. weight Kg	0.9			1.0	1.5	2.8
