Yaskawa Sigma-7 SERVOPACKs 2kW SGD7S-180A10A002

Series#: Yaskawa Servo Drive

Product Details

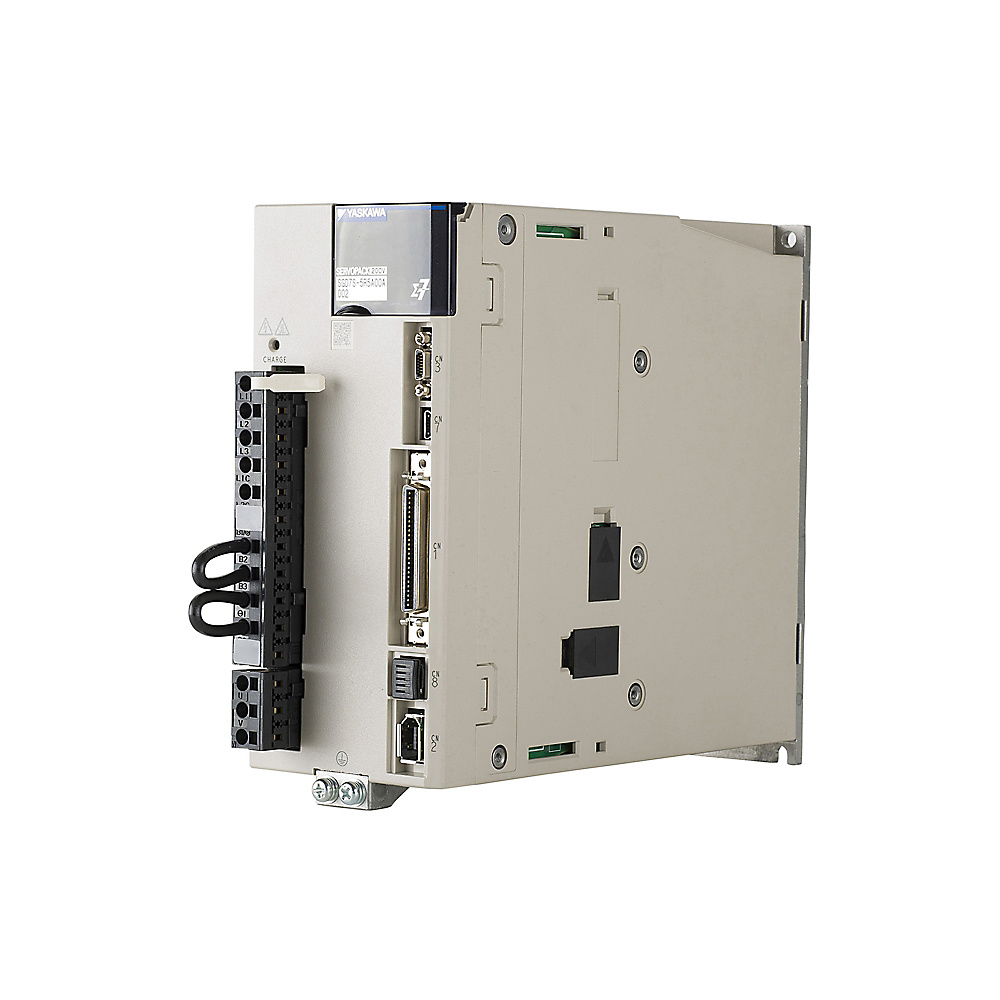

Yaskawa Sigma-7 SERVOPACKs 2kW SGD7S-180A10A002
We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China.
We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks
100% Original and new,In stock by Yaskawa Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Yaskawa Sigma-7 SERVOPACKs SGD7S-	R70F										R90F								2R1F									2R8F
Maximum Applicable Motor Capacity [kW]	0.05										0.1								0.2									0.4
Continuous Output Current [Arms]	0.66										0.91								2.1									2.8
Instantaneous Maximum Output Current [Arms]	2.1										3.2								6.5									9.3
Control Power Supply	100 VAC to 120 VAC, -15% to +10%, 50/60 Hz
Power Supply Capacity [kVA]*	0.2										0.3								0.6									1.4
Regenerative Resistor Minimum Allowable External Resis- tance [W]	40										40								40									40
Overvoltage Category	III
Yaskawa Sigma-7 SERVOPACKs	R70A	R90A		1R6A		2R8A						3R8A		5R5A				7R6A			120A				180A				200A					330A
Maximum Applicable Motor Capacity [kW]	0.05	0.1		0.2		0.4						0.5		0.75				1.0			1.5				2.0				3.0					5.0
Continuous Output Current [Arms]	0.66	0.91		1.6		2.8						3.8		5.5				7.6			11.6				18.5				19.6					32.9
Instantaneous Maximum Output Current [Arms]	2.1	3.2		5.9		9.3						11		16.9				17			28				42				56					84.0
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]*	0.2	0.3		0.5		1.0						1.3		1.6				2.3			3.2				4.0				5.9					7.5
Main Circuit Power Loss [W]	5.1	7.3		13.5		24.0						20.1		43.8				53.6			65.8				111.9				113.8					263.7
Control Circuit Power Loss [W]	17	17		17		17						17		17				17			22				22				22					27
Built-in Regenerative Resistor Power Loss [W]	–	–		–		–						8		8				8			10				16				16					36.0
Total Power Loss [W]	22.1	24.3		30.5		41.0						45.1		68.8				78.6			97.8				149.9				151.8					326.7
Yaskawa Sigma-7 SERVOPACKs Model SGD7S-	470A							550A																590A							780A
Maximum Applicable Motor Capacity [kW]	6.0							7.5																11							15
Continuous Output Current [Arms]	46.9							54.7																58.6							78.0
Instantaneous Maximum Output Current [Arms]	110							130																140							170
Yaskawa Sigma-7 SERVOPACKs SGD7S-	R70A								R90A							1R6A							2R8A							5R5A
Maximum Applicable Motor Capacity [kW]	0.05								0.1							0.2							0.4							0.75
Continuous Output Current [Arms]	0.66								0.91							1.6							2.8							5.5
Instantaneous Maximum Output Current [Arms]	2.1								3.2							5.9							9.3							16.9
Control Power Supply	200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]*	0.2								0.3							0.6							1.2							1.9
Yaskawa Sigma-7 SERVOPACKs SGD7S-	R70A		R90A				1R6A						2R8A				3R8A					5R5A					7R6A						120A
Maximum Applicable Motor Capacity [kW]	0.05		0.1				0.2						0.4				0.5					0.75					1.0						1.5
Continuous Output Current [Arms]	0.66		0.91				1.6						2.8				3.8					5.5					7.6						11.6
Instantaneous Maximum Output Current [Arms]	2.1		3.2				5.9						9.3				11.0					16.9					17.0						28.0
Control Power Supply	270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]*	0.2		0.3				0.6						1				1.4					1.6					2.3						3.2
Yaskawa Sigma-7 SERVOPACKs SGD7S-	180A				200A					330A					470A					550A						590A						780A
Maximum Applicable Motor Capacity [kW]	2.0				3.0					5.0					6.0					7.5						11.0						15.0
Continuous Output Current [Arms]	18.5				19.6					32.9					46.9					54.7						58.6						78.0
Instantaneous Maximum Output Current [Arms]	42.0				56.0					84.0					110					130						140						170
Control Power Supply	270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]*	4.0				5.9					7.5					10.7					14.6						21.7						29.6
