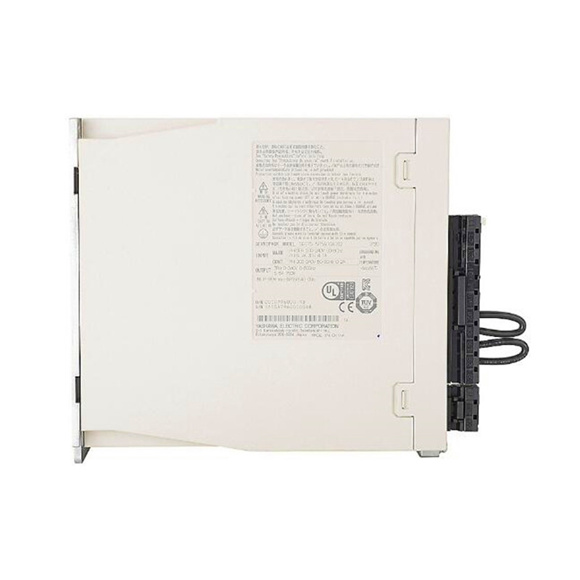

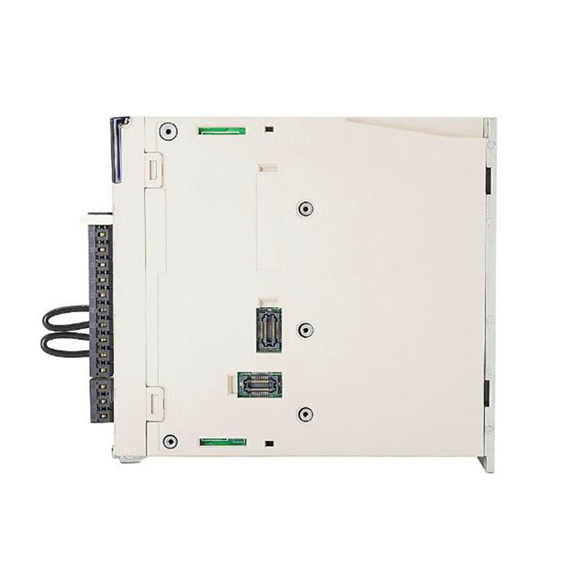

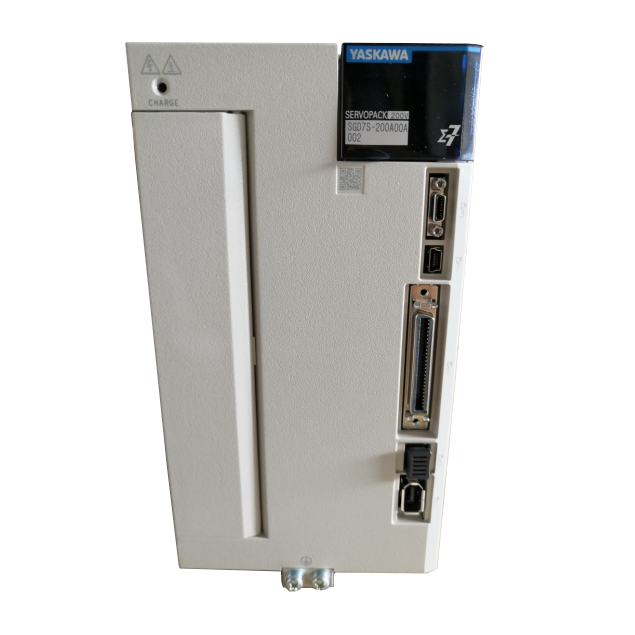

Yaskawa Sigma-7 SERVOPACKs 400W SGD7S-2R8A00A002

Series#: Yaskawa Servo Drive

Product Details

  • Yaskawa Sigma-7 SERVOPACKs 400W SGD7S-2R8A00A002
  • We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China.
  • We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
  • Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks
  • 100% Original and new,In stock by Yaskawa Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Yaskawa Sigma-7 SERVOPACKs  SGD7W- 1R6A 2R8A 5R5A 7R6A
Maximum Applicable Motor Capacity [kW] 0.2 0.4 0.75 1.0
Continuous Output Current [Arms] 1.6 2.8 5.5 7.6
Instantaneous Maximum Output Current [Arms] 5.9 9.3 16.9 17.0
Main Cir- cuit Power Supply 270 VDC to 324 VDC, -15% to +10%
Main Cir- cuit Input Current [Arms]* 3.0 5.8 9.7 14
Control Power Supply 270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]* 1.2 2 3.2 4.6
Main Circuit Power Loss [W] 23 40 76 92
Control Circuit Power Loss [W] 24 24 24 24
Total Power Loss [W] 47 64 100 116
Item Specification
Control Method IGBT-based PWM control, sine wave current drive
Feedback With Rotary Servo Motor Serial encoder: 20 bits or 24 bits (incremental encoder/absolute encoder)

22 bits (absolute encoder)





With Linear Servo Motor

• Absolute linear encoder (The signal resolution depends on the absolute linear encoder.)

• Incremental linear encoder (The signal resolution depends on the incremental linear encoder or Serial Converter Unit.)



Environ- mental Conditions

Surrounding Air Temperature

-5°C to 55°C

With derating, usage is possible between 55°C and 60°C. Refer to the following section for derating specifications.

Derating Specifications (page 230)



Storage Tempera- ture

-20°C to 85°C
Surrounding Air Humidity 95% relative humidity max. (with no freezing or condensation)
Storage Humidity 95% relative humidity max. (with no freezing or condensation)
Vibration Resistance 4.9 m/s2
Shock Resistance 19.6 m/s2
Degree of Protection IP20
Pollution Degree 2

• Must be no corrosive or flammable gases.

• Must be no exposure to water, oil, or chemicals.

• Must be no dust, salts, or iron dust.





Altitude

1,000 m or less.

With derating, usage is possible between 1,000 m and 2,000 m. Refer to the following section for derating specifications.

Derating Specifications (page 230)





Others

Do not use the SERVOPACK in the following locations: Locations subject to static electricity noise, strong electromagnetic/magnetic fields, or radioactivity


Applicable Standards

UL 61800-5-1, CSA C22.2 No.274, EN50178, EN 61800-5-1, EN 55011 group 1 class A, EN 61000-6-2, EN 61000-6-4,

and EN 61800-3

Mounting Base-mounted or rack-mounted


Speed Control Range

1:5000 (At the rated torque, the lower limit of the speed control range must not cause the Servo Motor to stop.)




Coefficient of Speed Fluctuation*

±0.01% of rated speed max. (for a load fluctuation of 0% to 100%)




0% of rated speed max. (for a voltage fluctuation of ±10%)




±0.1% of rated speed max. (for a temperature fluctuation of 25°C

±25°C)



Torque Control Pre- cision (Repeatability)

±1%


Soft Start Time Setting

0 s to 10 s (Can be set separately for acceleration and deceleration.)
