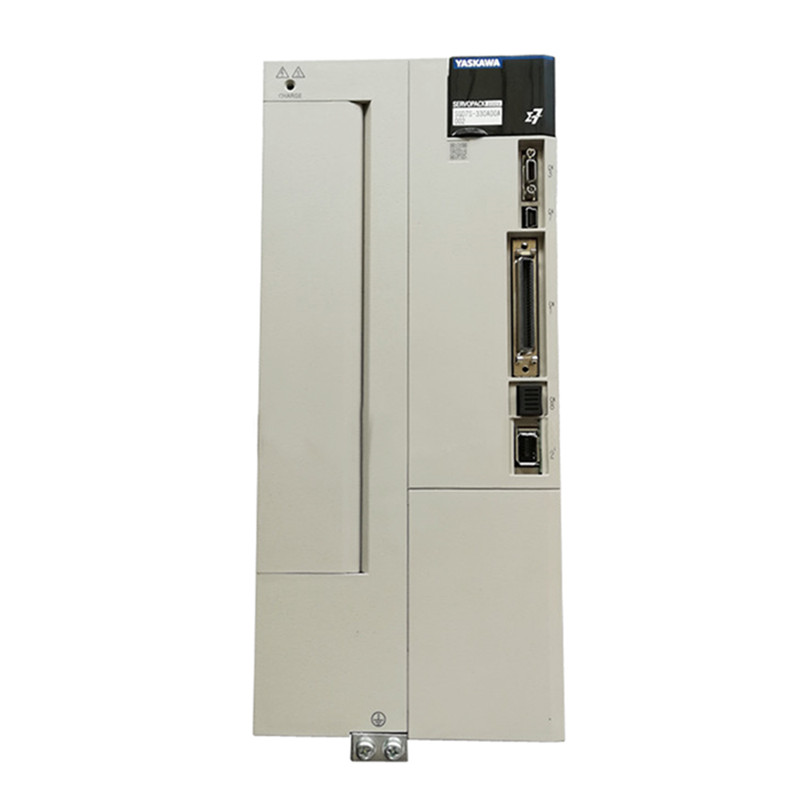

Yaskawa Sigma-7 SERVOPACKs 5.5kW SGD7S-470A00A002

Series#: Yaskawa Servo Drive

Product Details

  • Yaskawa Sigma-7 SERVOPACKs 5.5kW SGD7S-470A00A002
  • Industry-leading 3.1kHz bandwidth significantly improves settling time.
  • Advanced autotuning and tuning-less features automatically tune a servo system without user effort.
  • Powerful package of tuning functions include compensation for machine inertia, vibration, ripples, friction.
  • Maintains tuning accuracy despite inertia changes up to 30:1.
  • IEC 61508 SIL3 safety certification.
  • Completely compatible with Sigma-7 servo motors.
  • Improved filtering minimizes inaccuracies due to electrical interference, machine resonance and mechanical vibration.
  • Fully compatible with Yaskawa’s MPiec series of machine controllers.
Qty:

Specification

Yaskawa Sigma-7 SERVOPACKs 5.5kW SGD7S-470A00A002

S-7S Single-axis Analog Voltage/Pulse Train Reference SERVOPACKs

Model SGD7S- 470A 550A 590A 780A
Maximum Applicable Motor Capacity [kW] 6.0 7.5 11 15
Continuous Output Current [Arms] 46.9 54.7 58.6 78.0
Instantaneous Maximum Output Current [Arms] 110 130 140 170
Main Circuit Power Supply 200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Input Current [Arms]*1 29 37 54 73
Control Power Supply 200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]*1 10.7 14.6 21.7 29.6
Power Loss*1 Main Circuit Power Loss [W] 279.4 357.8 431.7 599.0
Control Circuit Power Loss [W] 33 33 48 48
External Regenerative Resistor Unit Power Loss [W] 180*2 180*3 350*3 350*3
Total Power Loss [W] 312.4 390.8 479.7 647.0
External Regenera- tive Resistor Unit External Regenera- tive Resistor Unit Resistance [W] 6.25*2 3.13*3 3.13*3 3.13*3
Capacity [W] 880*2 1760*3 1760*3 1760*3
Minimum Allowable External Resistance [W] 5.8 2.9 2.9 2.9
Overvoltage Category III

*1. This is the net value at the rated load.

*2. This value is for the optional JUSP-RA04-E Regenerative Resistor Unit.

*3. This value is for the optional JUSP-RA05-E Regenerative Resistor Unit.
