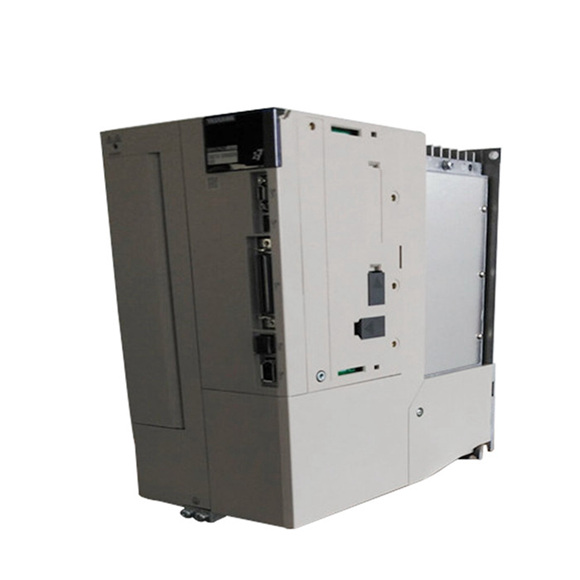

Yaskawa Sigma-7 SERVOPACKs 5kW SGD7S-330A00A002

Series#: Yaskawa Servo Drive

Product Details

  • Yaskawa Sigma-7 SERVOPACKs 5kW SGD7S-330A00A002
  • We are First Class Yaskawa servomotors dealer and Yaskawa servomotors distributor in China.
  • We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
  • Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks
  • 100% Original and new,In stock by Yaskawa Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Yaskawa Sigma-7 SERVOPACKs SGD7S- R70F R90F 2R1F 2R8F
Maximum Applicable Motor Capacity [kW] 0.05 0.1 0.2 0.4
Continuous Output Current [Arms] 0.66 0.91 2.1 2.8
Instantaneous Maximum Output Current [Arms] 2.1 3.2 6.5 9.3
Control Power Supply 100 VAC to 120 VAC, -15% to +10%, 50/60 Hz
Power Supply Capacity [kVA]* 0.2 0.3 0.6 1.4
Regenerative Resistor

Minimum Allowable External Resis- tance [W]

40 40 40 40
Overvoltage Category III
Yaskawa Sigma-7 SERVOPACKs R70A R90A 1R6A 2R8A 3R8A 5R5A 7R6A 120A 180A 200A 330A
Maximum Applicable Motor Capacity [kW] 0.05 0.1 0.2 0.4 0.5 0.75 1.0 1.5 2.0 3.0 5.0
Continuous Output Current [Arms] 0.66 0.91 1.6 2.8 3.8 5.5 7.6 11.6 18.5 19.6 32.9
Instantaneous Maximum Output Current [Arms] 2.1 3.2 5.9 9.3 11 16.9 17 28 42 56 84.0
Control Power Supply 200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]* 0.2 0.3 0.5 1.0 1.3 1.6 2.3 3.2 4.0 5.9 7.5


Main Circuit Power Loss [W]

5.1 7.3 13.5 24.0 20.1 43.8 53.6 65.8 111.9 113.8 263.7
Control Circuit Power Loss [W] 17 17 17 17 17 17 17 22 22 22 27
Built-in Regenerative Resistor Power Loss [W] 8 8 8 10 16 16 36.0
Total Power Loss [W] 22.1 24.3 30.5 41.0 45.1 68.8 78.6 97.8 149.9 151.8 326.7
Yaskawa Sigma-7 SERVOPACKs Model SGD7S- 470A 550A 590A 780A
Maximum Applicable Motor Capacity [kW] 6.0 7.5 11 15
Continuous Output Current [Arms] 46.9 54.7 58.6 78.0
Instantaneous Maximum Output Current [Arms] 110 130 140 170
Yaskawa Sigma-7 SERVOPACKs SGD7S- R70A R90A 1R6A 2R8A 5R5A
Maximum Applicable Motor Capacity [kW] 0.05 0.1 0.2 0.4 0.75
Continuous Output Current [Arms] 0.66 0.91 1.6 2.8 5.5
Instantaneous Maximum Output Current [Arms] 2.1 3.2 5.9 9.3 16.9
Control Power Supply 200 VAC to 240 VAC, -15% to +10%, 50 Hz/60 Hz
Power Supply Capacity [kVA]* 0.2 0.3 0.6 1.2 1.9
Yaskawa Sigma-7 SERVOPACKs SGD7S- R70A R90A 1R6A 2R8A 3R8A 5R5A 7R6A 120A
Maximum Applicable Motor Capacity [kW] 0.05 0.1 0.2 0.4 0.5 0.75 1.0 1.5
Continuous Output Current [Arms] 0.66 0.91 1.6 2.8 3.8 5.5 7.6 11.6
Instantaneous Maximum Output Current [Arms] 2.1 3.2 5.9 9.3 11.0 16.9 17.0 28.0
Control Power Supply 270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]* 0.2 0.3 0.6 1 1.4 1.6 2.3 3.2
Yaskawa Sigma-7 SERVOPACKs SGD7S- 180A 200A 330A 470A 550A 590A 780A
Maximum Applicable Motor Capacity [kW] 2.0 3.0 5.0 6.0 7.5 11.0 15.0
Continuous Output Current [Arms] 18.5 19.6 32.9 46.9 54.7 58.6 78.0
Instantaneous Maximum Output Current [Arms] 42.0 56.0 84.0 110 130 140 170
Control Power Supply 270 VDC to 324 VDC, -15% to +10%
Power Supply Capacity [kVA]* 4.0 5.9 7.5 10.7 14.6 21.7 29.6
