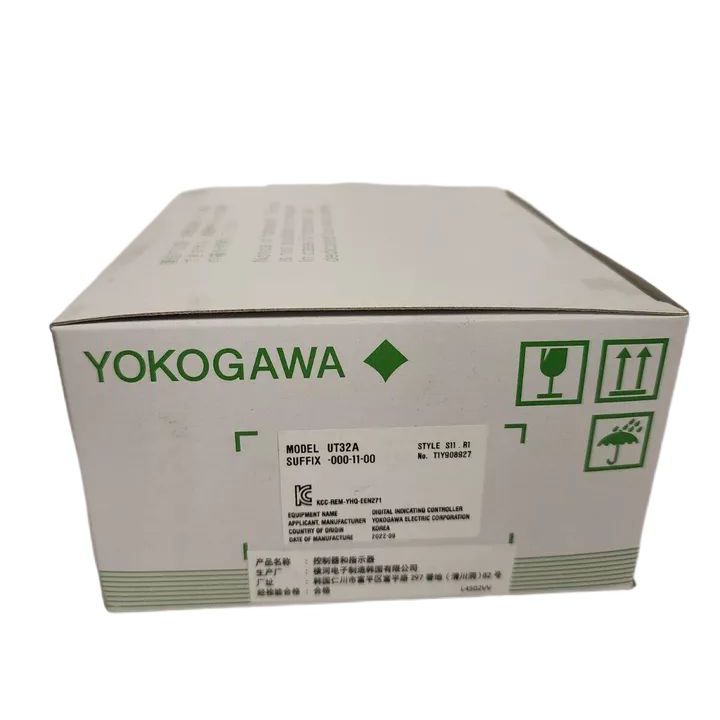

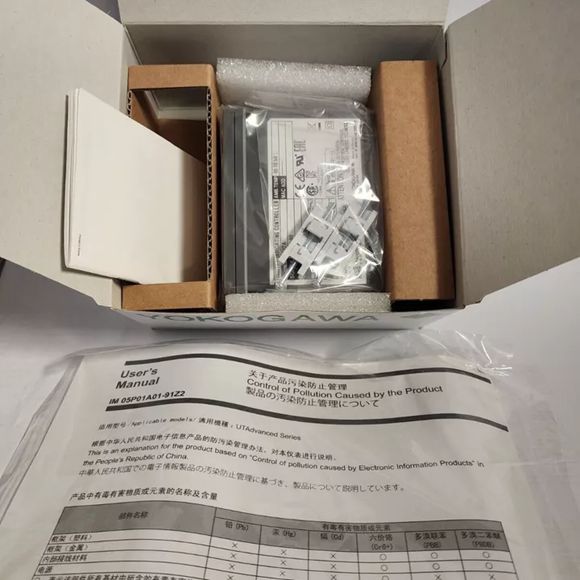

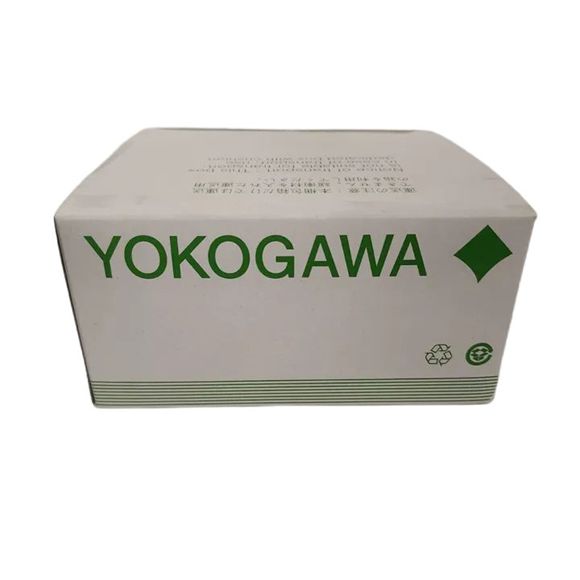

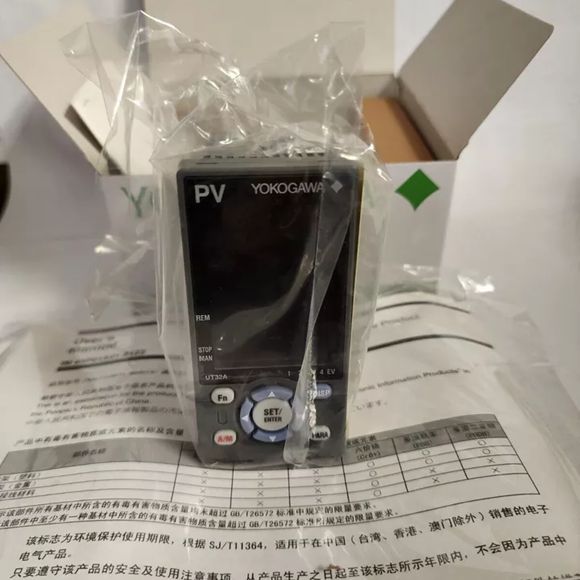

YOKOGAWA temperature controller UT32A-000-10-00

Series#: YOKOGAWA Pressure Transmitters

Product Details

  • YOKOGAWA temperature controller UT32A-000-10-00
  • Yokogawa Program Controller UP35A/UP32A
  • We are First Class Yokogawa Measurement dealer and distributor in China.
  • We can Supply Yokogawa Measurement parts,such as Pressure Transmitters,Flowmeters,Temperature Transmitters,Level Meters,Level Meters and So on,
  • 100% Original and new,In stock by Yokogawa Measurement
  • Delivery time: Ready in stock and 1-2 days for ship out
  • MOQ: 1pcs
Qty:

Add to Enquiry Cart

Specification



ITEM UT35A UT32A
PV input Input type 1 Universal input (TC, RTD, mV, V, mA)
Indication accuracy ±0.1% of F.S.
Control scan period 200 msec
PV/SP data display 14-segment, 5 digits, Bar graph LCD display
Control outputs (MV) Type Relay, Voltage Pulse, Current
Algorithm ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional
Digital inputs Number 2 (Std) 7 (Max) 2 (Std) 4 (Max)
Type SP No.Change, PID No. Change, A/M Change, etc
Digital outputs Number 3 (Std) 8 (Max) 3 (Std) 5 (Max)
Function PV High, PV Low, Dev High, etc
Current trans input (option） Number 2
Retransmission Number 1
Type PV, SP, OUT, etc
Remote (aux.) input (option) Number – –
Type –
Loop power supply (LPS) (option) Number 1
Voltage 21.6 to 28.0 VDC
Communication (option) Number 1 1
Type RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet RS-485, CC-Link
Other specifications Power supply 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option)
Power consumption Max 18 VA Max 15 VA
Mass Max 0.5 kg

Comparison Chart (UT75A/UT55A/UT52A/UT35A/UT32A)

UT75A UT55A UT52A UT35A UT32A
Model UT75A UT55A UT52A UT35A UT32A
Size 1/4 DIN ✓ ✓ ✓
1/8 DIN ✓ ✓
Depth from the panel surface (mm) 65 65 65 65 65
Number of Control loops Standard (Maximum) 1(2) 1 1 1 1
Control Scan Period (msec) Choice 50/100/200 Choice 50/100/200 Choice 50/100/200 200 200
Display Function Number of PV Display Digits 5 5 5 5 5
Active Color PV Display Function ✓ ✓ ✓ ✓ ✓
Guide Scroll Display Function ✓ ✓ ✓ ✓ ✓
Message Display Function ✓ ✓ ✓ ✓ ✓
Bar graph display (Number) ✓(2) ✓(2) ✓(2) ✓(1) ✓(1)
PV Input Indication Accuracy (% of F.S.) 0.1 0.1 0.1 0.1 0.1
PV Input Type TC ✓ ✓ ✓ ✓ ✓
RTD (3-wire) ✓ ✓ ✓ ✓ ✓
RTD (4-wire) ✓ ✓ ✓
mV, V ✓ ✓ ✓ ✓ ✓
mA ✓ ✓ ✓ ✓ ✓
Number of Analog Inputs Standard (Maximum) 1(4) 1(4) 1(2) 1 1
Number of SPs (PIDs) Maximum 20(16) 8 8 4 4
Number of Control Modes Maximum 9 8 8 1 1
Number of Control Types Maximum 8 8 8 5 5
Control Output Type Relay Contact Output, Voltage pulse output, Current output ✓ ✓ ✓ ✓ ✓
Algorithm ON/OFF ✓ ✓ ✓ ✓ ✓
PID (Continuance, Time Proportion) ✓ ✓ ✓ ✓ ✓
Position proportional ✓ ✓ ✓ ✓ ✓
Heating/cooling ✓ ✓ ✓ ✓ ✓
Number of Analog Outputs Standard (Maximum) 2(3) 2(3) 2(3) 2 2
Number of Digital Inputs Standard (Maximum) 3(8) 3(9) 3(5) 2(7) 2(4)
Number of Alarms 8 8 8 4 4
Number of Digital Outputs Standard (Maximum) 3(8) 3(18) 3(5) 3(8) 3(5)
Communication RS-485 communication (Maximum) ✓(2) ✓(2) ✓(1) ✓(1) ✓(1)
Ethernet communication ✓ ✓ ✓
Open Network (CC-Link/PROFIBUS-DP/DeviceNet) ✓ ✓ ✓
Various Function Quick Setting Function ✓ ✓ ✓ ✓ ✓
Split Computation Output Function ✓ ✓ ✓
Ratio and Square Root Extraction Function ✓ ✓ ✓
Remote SP Function ✓ ✓ ✓
24 V DC Loop Power Supply Function ✓ ✓ ✓ ✓
Heater Break Alarm Function ✓
(Standard type)		 ✓
(Standard type)		 ✓
(Standard
type or
Heating/
cooling type)		 ✓
(Standard
type or
Heating/
cooling type)
Ladder Sequence Function (Number of max. steps) ✓(1000) ✓(500) ✓(500) ✓(300) ✓(300)
Other specifications Power Supply AC100 V to 240 V ✓ ✓ ✓ ✓ ✓
AC/DC 24 V ✓ ✓ ✓ ✓ ✓
Dust and waterproof Level of Front Panel NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66)
Configuration Tool Via Light-loader Communication ✓ ✓ ✓ ✓ ✓
Via Maintenance Port
Communication		 ✓ ✓ ✓ ✓ ✓
Via RS-485/Ethernet
communication		 ✓/✓ ✓/✓ ✓/- ✓/✓ ✓/-

The table above includes specifications of the standard models only.
* 1: Hose down test only.

Input Range

Input type
TC K, J, T, B, S, R, N, E, L, U, W
PL-2, PR20-40, W97Re3-W75Re25
RTD JPt100, Pt100
DC Voltage 0.4 to 2.0 V, 1.0 to 5.0 V, 0.0 to 2.0 V, 0 to 10 V, -10 to 20 mV, 0 to 100 mV
DC Current 4 to 20 mA, 0 to 20 mA
